10N8M8FS
Product Highlights
- Body Material: 316 Stainless Steel to NACE as standard
- Standard Connection Sizes: 1/2" NPT Male x Female
- Standard Bore Sizes: Nominally 4mm to 6mm depending on connection size
- Stem Packing: Multi stage 'dynamic' stem packing in PTFE / RPTFE to guarantee a gas tight seal under all conditions. Maximum Temperature of 240o C for PTFE packed units and 400o C for units packed with flexible graphite
- Max Cold Working Pressure: 10,000 psi (10N)
- Fire safe: Designed to comply with BS 5677 Pt2, BS EN IOS 10497 and API607
- Certifications BS EN 10204 3.1B & 3.2 Material , PMI & NDT
10N8F8FS
Product Highlights
- Body Material: 316 Stainless Steel to NACE as standard
- Standard Connection Sizes: 1/2" NPT Female x Female
- Standard Bore Sizes: Nominally 4mm to 6mm depending on connection size
- Stem Packing: Multi stage 'dynamic' stem packing in PTFE / RPTFE to guarantee a gas tight seal under all conditions. Maximum Temperature of 240o C for PTFE packed units and 400o C for units packed with flexible graphite
- Max Cold Working Pressure: 10,000 psi (10N)
- Fire safe: Designed to comply with BS 5677 Pt2, BS EN IOS 10497 and API607
- Certifications BS EN 10204 3.1B & 3.2 Material , PMI & NDT
61N
Product Highlights
- Body Material: 316 Stainless Steel to NACE MR 01-75 as standard
- Standard Connection Sizes: 1/4", 3/8”, 1/2”, 3/4" & 1" NPT Male or Female
- Standard Connection Sizes: 1/4", 3/8”, 1/2”, 3/4" & 1" BSP Male or Female
- Stem Packing: Fully adjustable, dynamically responsive, multi ring 'gland sandwich' in either PTFE or Grafoil to resist all operating and process requirements. Budenberg offer 100% gland integrity for the lifetime of every valve
- Fire safe option: Designed to comply with BS 5677 Pt2, BS EN IOS 10497 and API607
- Certifications: BS EN 10204 3.1B nc Mill Certificates Pressure Test Certificate
- Operating Pressure: 6,000 psig Cold Working Pressure designated 61Nx and 10,000 psig Cold Working Pressure designated 101Nx
- Operating Temperature: -20 to 240°C maximum for units fitted with PTFE stem packing and -20 to 400°C maximum for units fitted with Grafoil packing
Needle Valves

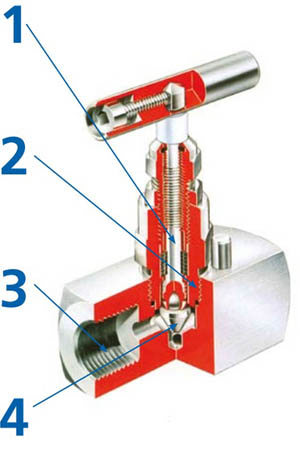

Four essential reasons to specify Budenberg needle valves
1. Gland/Stem Leakage - ‘Banished’
Adjustable, dynamically responsive multi ring gland “sandwich” resists all operating pressures and processes. Budenberg offer 100% gland integrity for
the lifetime of every valve. Super finished stem diameter also gives low operating torque.
2. Body/Bonnet Joint Failure - “Eliminated”
Over designed, high strength bonnet threads, combine with “soft” parent metal bottom seal to give thread closure protection and further enhance environmental
safety. Guaranteed.
3. Thread/Leak Failure - “Solved”
Precision cut CNC threads, subjected to 100% 4 stage inspection, mean precise connectivity with reduced installation time and cost. Guaranteed sealing
with minimum effort. Budenberg banish your biggest problem forever.
4. Through Seat Leakage - “Forgotten”
Unique knuckle jointed stempoint technology resists over tightening, prevents wear and ensures 100% bubble tight seat closure, first time every time.
Features within Budenberg Valves:
-
- Fully engaged rolled bonnet threads provide
protection from process media by a metal
body / bonnet seal.
- Swaged self centering non rotating Duplex
stem point ensures positive seat closure under all
conditions.
- Rolled stem threads protected from process media
by fully adjustable ‘sandwich’ packed gland.
- Fully back seating - bonnet with anti blowout
stem.
- Totally encapsulated dust seal gives greater stem
thread protection.
- Vibration proof handle with positive location and
excess torque break feature.
-
- NACE MR-01-75 standard
- Fully developed field mounting system for all
products
- All options available. Full range of materials,
thread types and sizes.
- Conformance to ASME B31.1
- Pressure - Temperature ratings as listed in ASME/
ANSI B 16.34 Class 2500.
- All Pressure wetted parts fully traceable and
certified in accordance with EN10204 31B
- Material of construction as listed in ASME/ANSI B
16.34.
- Guaranteed 4 times factors of safety at Class
2500
