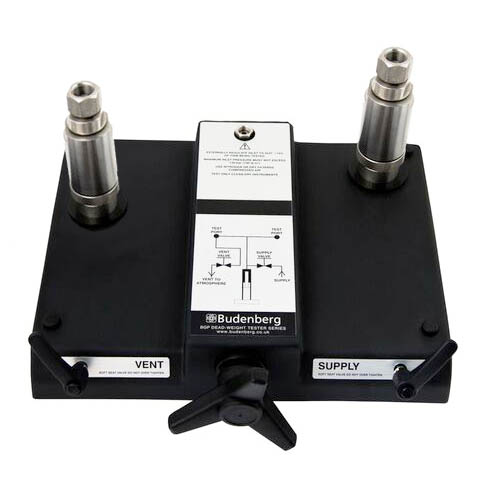

For the generation of pressures up to 120 bar (1600 lb/in2).Two union connectors: one for a test instrument and one for the instrument to be calibrated. Aluminium base with ABS cover. Four adjustable feet for levelling.
One pressure entry at back screwed internally 1/4” BSP. Also supplied with 1/4” BSP male to 1/4” NPT female adaptor. One Soft Seat valve admits air into system from inlet and the other vents the system to atmosphere.
Volume adjuster fitted to make fine adjustments of pressure with great ease. Gauge fitted to adjuster block to indicate approximate pressure. Complete with tool roll and manual.
